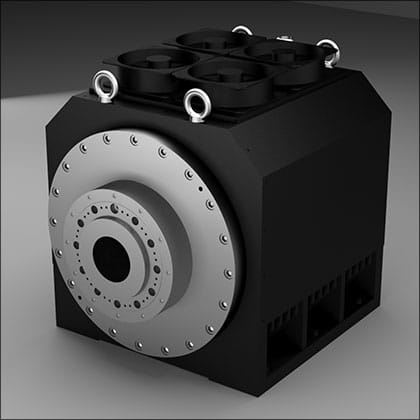

CNC lathe Motorized spindle A2011FA 50/75 kW /2000rpm/1200N.m

Product Details:


Brand Name: CTB
Model Number: A2011FA
Motor type: Motorized spindle
Payment Terms: CE
Place of Origin: China

Categories:

CNC Lathe Motorized spindle
BCES-A211FA-4050-400/2000

● Motorized motor: asynchronous motor
● Spindle Interface: ISO A2-11
● Taper Parameter: 1:20
● Shaft hole diameter: 105mm
● Speed Control Precision:+/-0.2rpm
● Resetting Precision:+/-10”
● Max.Output torque:3000N.m
● Weight: 1200KG



Performances

Star connection

Rated Power Rated Torque Rated Voltage Rated Current Rated Speed Max.Speed Poles
50 kW 1200 N.m 380 V 91 A 400 rpm 1000 rpm 6 P
Stator Resistor Stator Leakage Rotator Resistor Rotator Leakage Exciting Resistor Mutual Inductance Rotary Inertia
0.083 Ω 1.035 mH 0.074 Ω 2.230 mH 0.240 Ω 71.240 mH 4.67 kgm2

Corner connection

Rated Power Rated Torque Rated Voltage Rated Current Rated Speed Max.Speed Poles
50 kW 477 N.m 380 V 87 A 1000 rpm 2000 rpm 6 P
Stator Resistor Stator Leakage Rotator Resistor Rotator Leakage Exciting Resistor Mutual Inductance Rotary Inertia
0.083 Ω 1.093 mH 0.074 Ω 2.623 mH 1.283 Ω 91.617 mH 4.67 kgm2

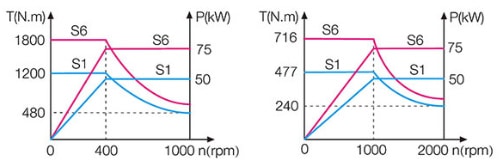

Performances Curve

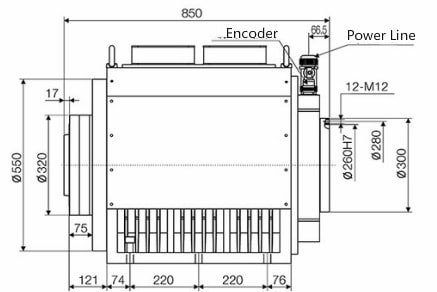

Overall Dimension

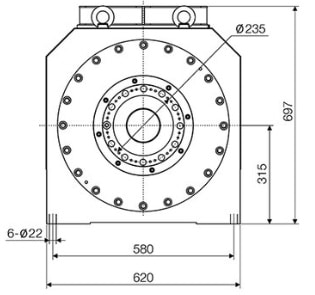

Front View



Standard Configuration
1、Front bearing NN3032 and 160BAR10S,back bearing NN3026,grease lubrication
2、Encoder 20Bit,bus output
3、Cooling fan voltage 220V



Choice disposition
1、Hydraulic brake 3 – 10 MPa,hydrautic pressure 2400-4800N.m;
2、Servo drive 50kW
