CNC milling machine

Configuration scheme

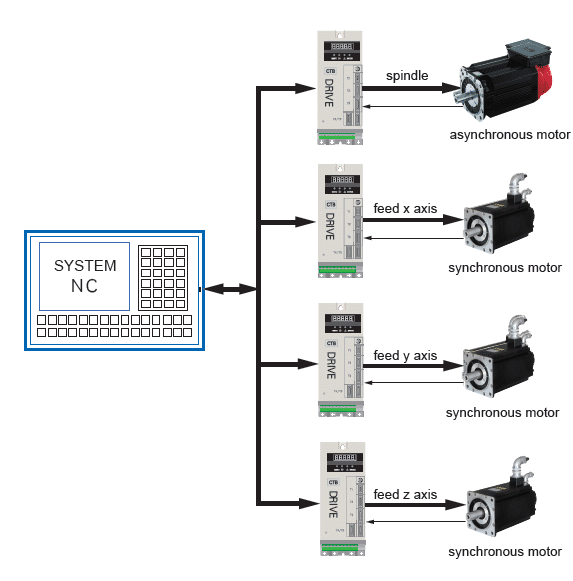

Scheme 1: CNC system + single shaft drive + asynchronous motor(spindle) + synchronous motor (feed axis)

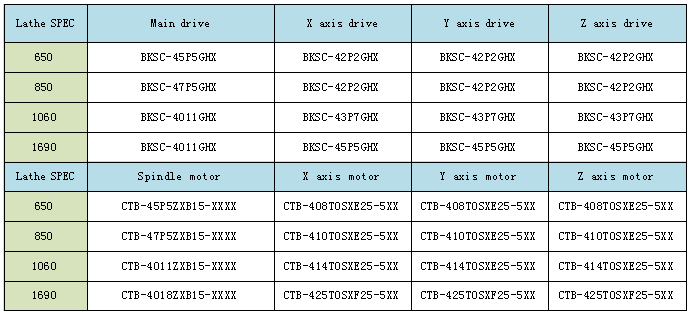

Model selection

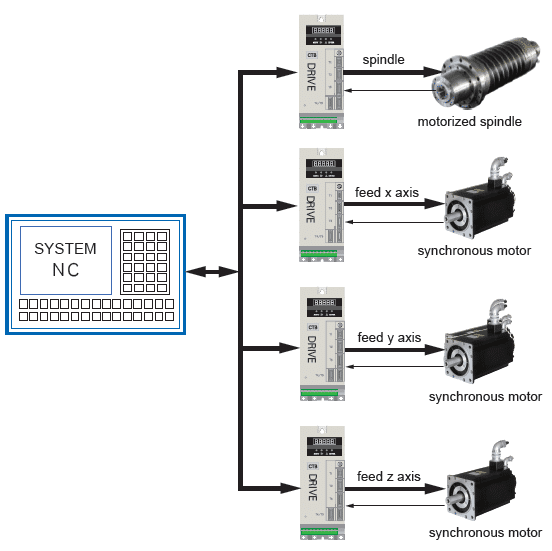

Scheme 2: NC system + single shaft drive + motorized spindle (spindle) + synchronous motor (feed shaft)

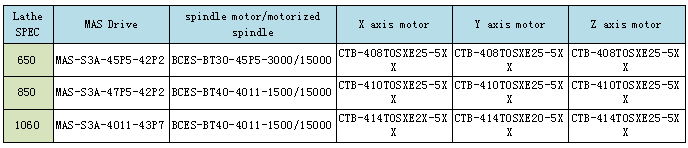

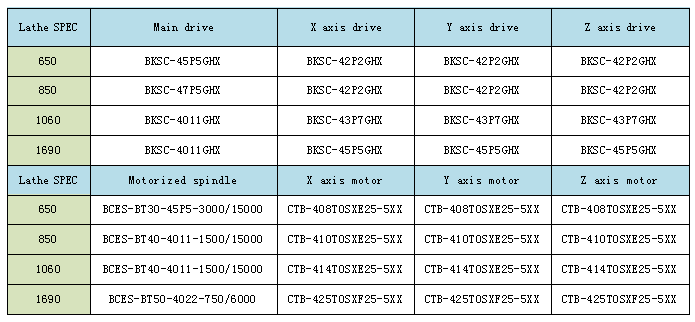

Model selection

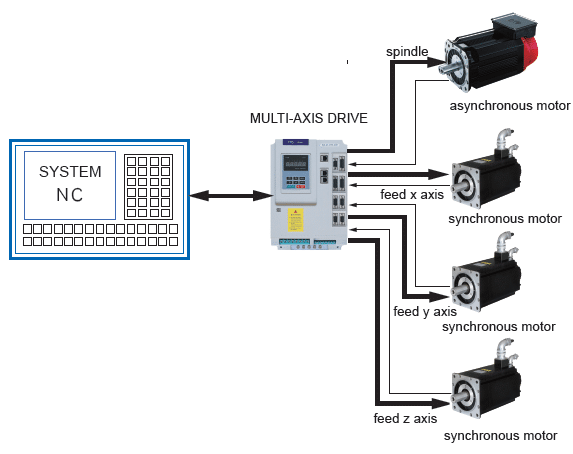

Scheme 3: CNC system + multi-axis drive + asynchronous motor (spindle) +synchronous motor (feed shaft)

Model selection

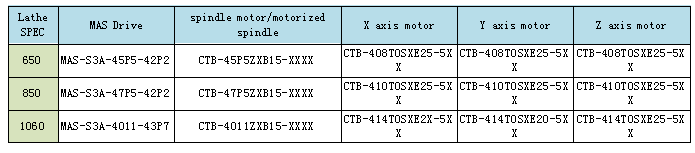

Analog control/ Pulse control method- solution

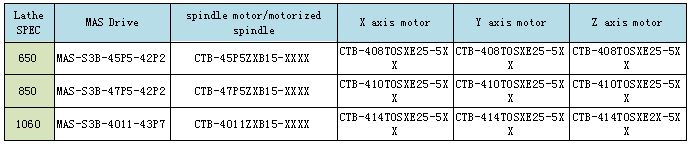

Bus control method

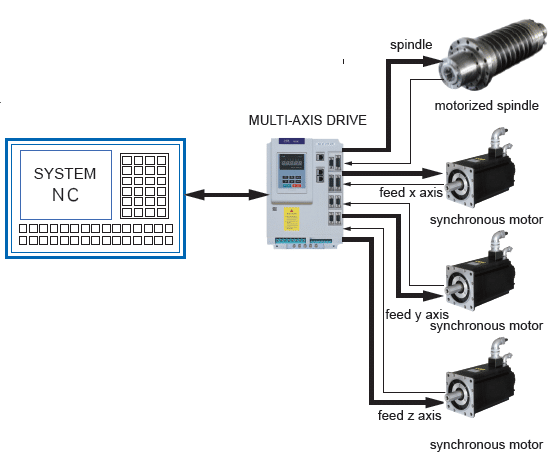

Scheme 4: CNC system + multi-axis drive+ motorized spindle (spindle) + synchronous motor (feed shaft)

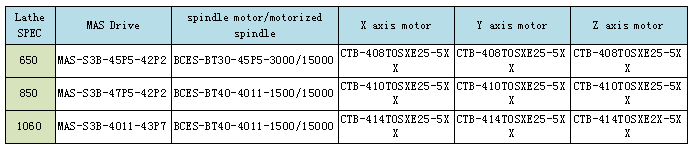

Model selection

Analog control/ Pulse control method- solution

Bus control method—solution

Case

User:BAOCHI
Milling machine:MTKXXX、CXXXY etc.
Motor:AC induction motor, AC PMSM, BT series motorized spindle
Drive:GH Series, MAS series

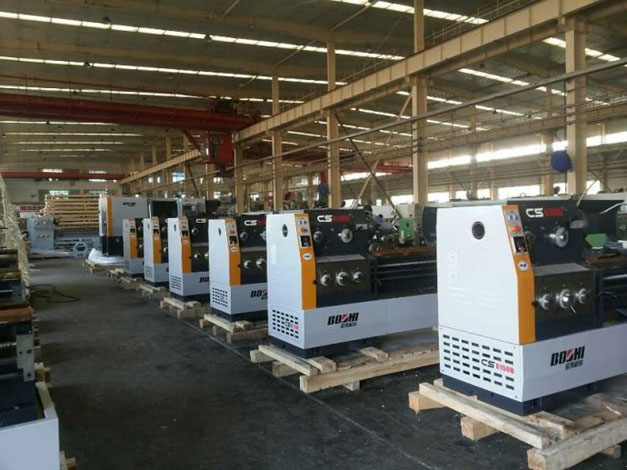

Device picture as below
