CNC Lathe

Configuration scheme

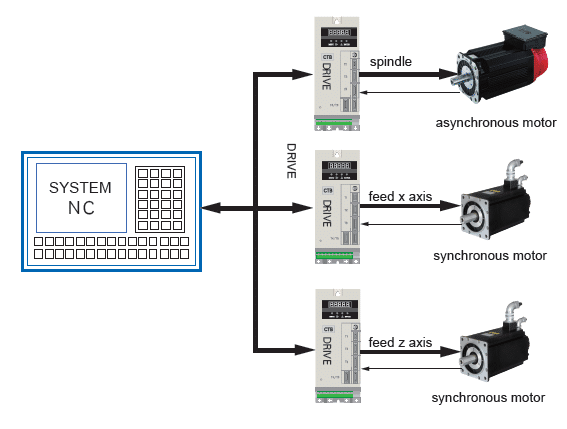

Scheme 1: CNC system + single shaft drive + asynchronous motor (spindle) +synchronous motor (feed shaft)

Built-in Vector motor

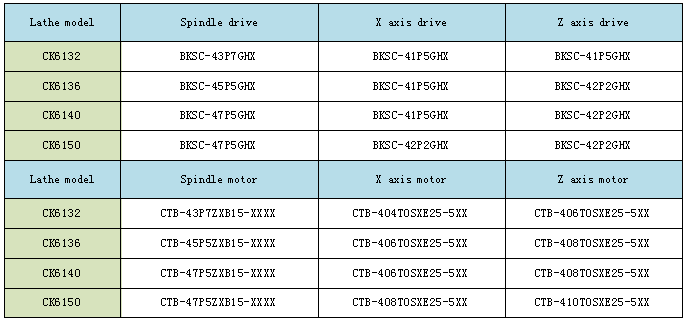

Model selection

Built-in Vector motor

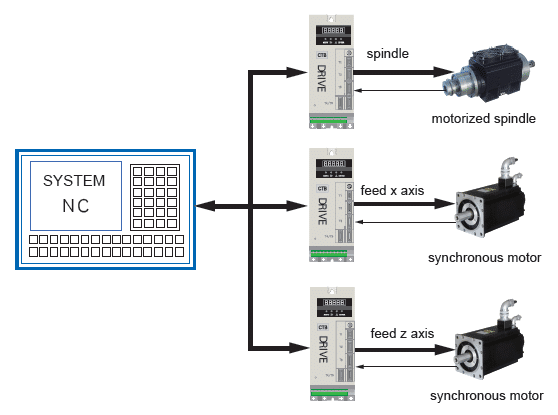

Scheme 2: NC system + single shaft drive,motorized spindle(spindle)+synchronous motor(feed shaft)

Built-in Vector motor

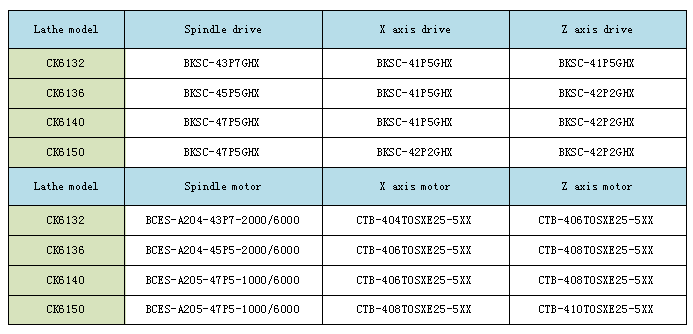

Model selection

Built-in Vector motor

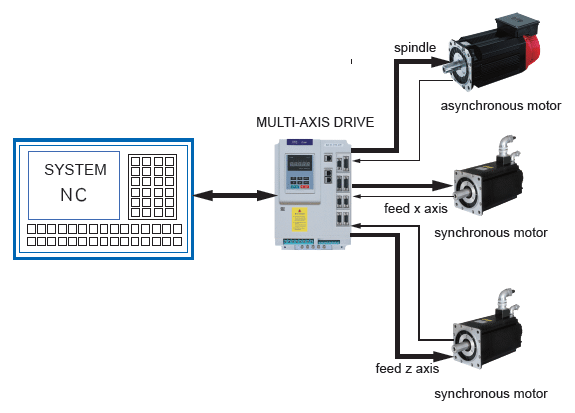

Scheme 3: CNC system + multi-axis drive + asynchronous motor (spindle) +synchronous motor (feed shaft)

Built-in Vector motor

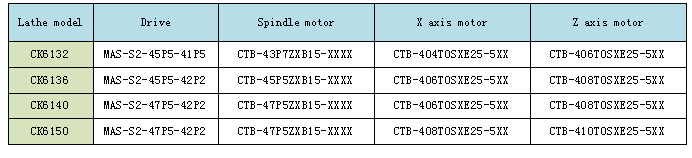

Model selection

Built-in Vector motor

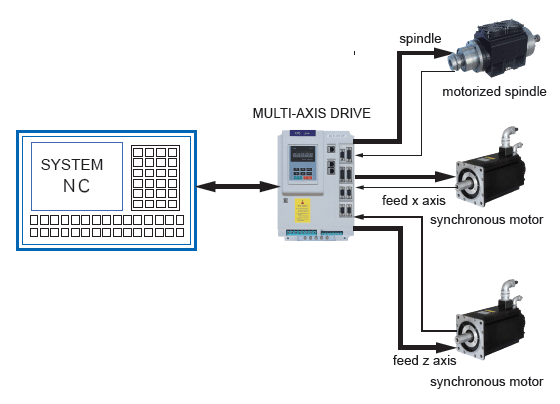

Scheme 4: CNC system + multi-axis drive + motorized spindle(spindle)+synchronous motor (feed axis)

Built-in Vector motor

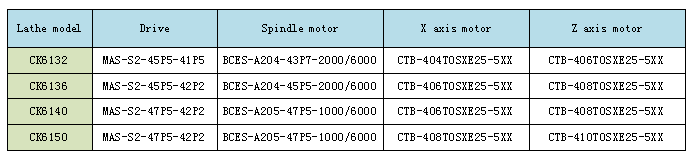

Model selection

Built-in Vector motor

Case and some achievements

User:SMTCL
lathe equipment:CAKXX series,HTCXX series
Motor:CTB AC induction motor,CTB AC permanent magnet synchronous motor,BCES series motorized spindle
Drive:GH series drives,MAS series drives

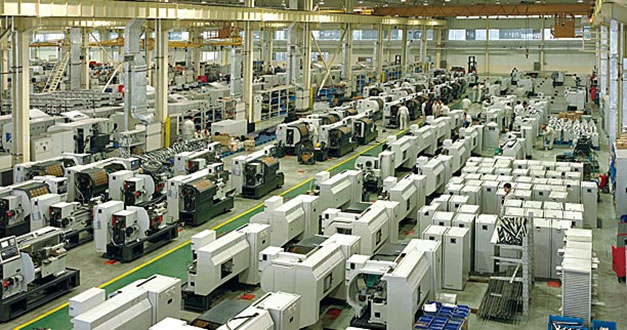

Equipment photos as below

Built-in Vector motor

Other famous users

DEZHOU DELONG(GROUP) MACHINE TOOL CO.,LTD HEADMAN
BAOCHI NING BO YONGBO MACHINERY Co.,Ltd
Yunnan CY group.,Ltd XKC
XIGEMA MACHINE TOOL CO.,LTD HONGGANG
DMTG TUIHENG
GONGTIE ZHENHUAN
IRONMAN JULANG
HAIWEI QILI
BAOYU JINHUO
DEHUA JUXIN
