Injection molding machine

Configuration scheme

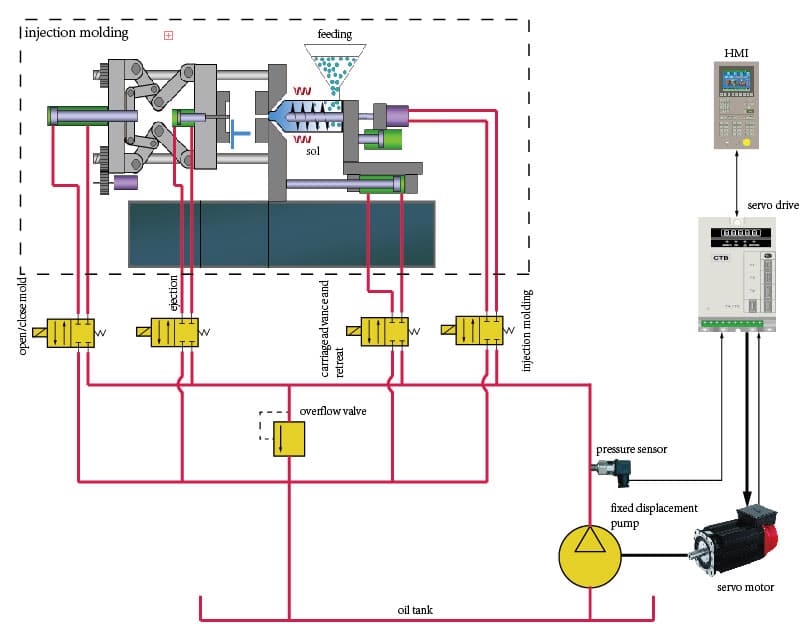

SMP scheme: man-machine interface + single shaft drive + servo motor + constant delivery pump + solenoid valve+ pressure sensorBuilt-in Vector motor

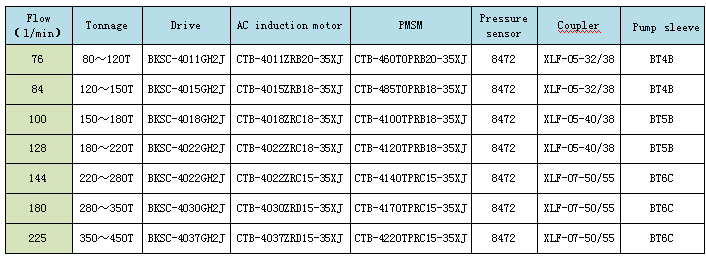

Model selection

Built-in Vector motor

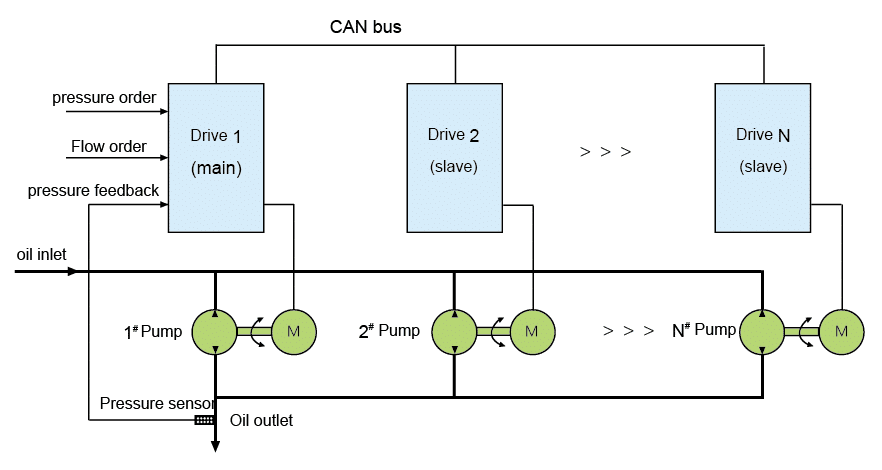

Big tonnage injection molding machine adopts multiple pump confluence: man-machine interface + N sets single shaft drive + N sets servo motor + N sets constant delivery pump + solenoid valve + pressure sensor

Built-in Vector motor

Case

User: Dong guan qiang xin plastic machinery manufacturing co., LTD
Equipment: horizontal injection molding machine
Equipment specification: 90 t, 110 t, 168 t, 200 t, 320 t, 450 t, 550 t, 880 t
Motor, ac induction motor
Drive: GH series drive
Solution: adopt single control under 450 t, use confluence control above 450 t

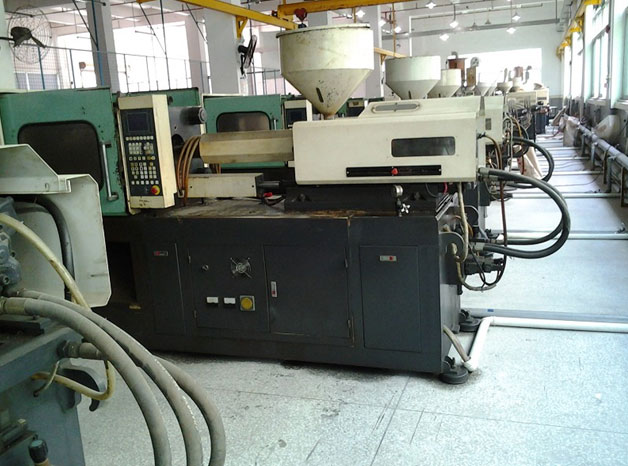

Production equipment photos below

Built-in Vector motor

Some other users

● Huizhou Yang Xin plastic machinery co., LTD
● Beijing Tai tan plastic co., LTD
● Shan dong Tai Feng hydraulic equipment co., LTD
