Plane milling grinding machine

Configuration scheme

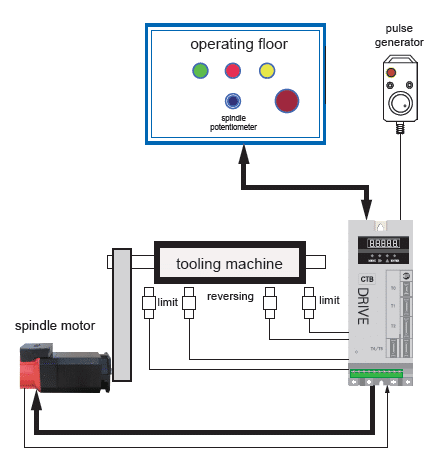

Hard limit scheme: operation station + single shaft drive + asynchronous motor (spindle) + reversing and limit switch + hand wheel

Built-in Vector motor

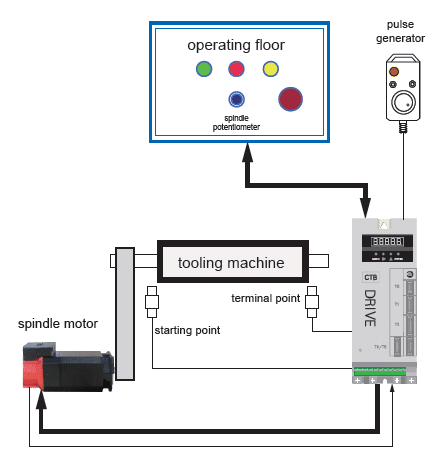

Soft stroke scheme: operation station + single shaft drive + asynchronous motor (spindle) + terminal switch + hand wheel

Built-in Vector motor

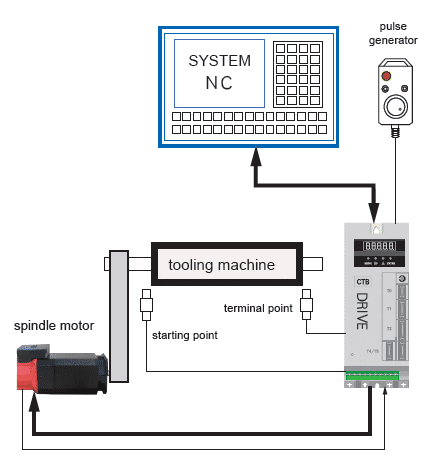

NC scheme: CNC system + single shaft drive + asynchronous motor (spindle) + terminal switch + hand wheel

Built-in Vector motor

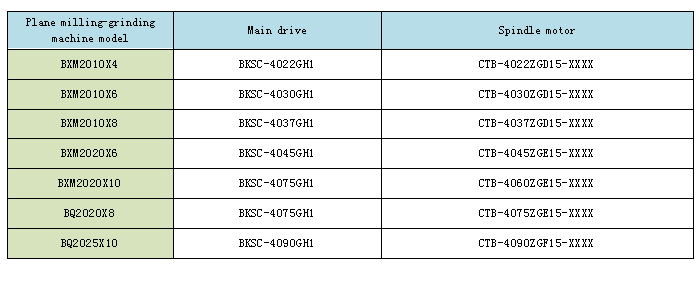

Model selection

Built-in Vector motor

Case

User:QING DAO YUEJUN MACHINERY Co., LTD
Device:BXMQ2010XX series, BXMQ2020XX etc.
Motor:AC induction servo motor
Drive:GH1 Series drive

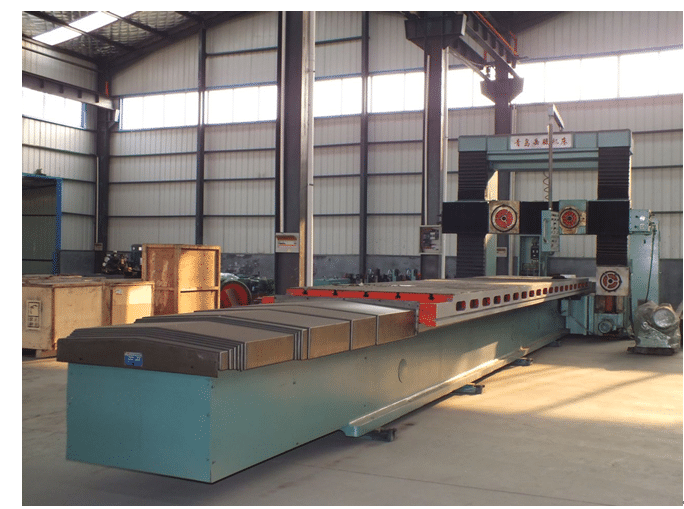

Device picture as below

Built-in Vector motor
