Screw press

Configuration scheme

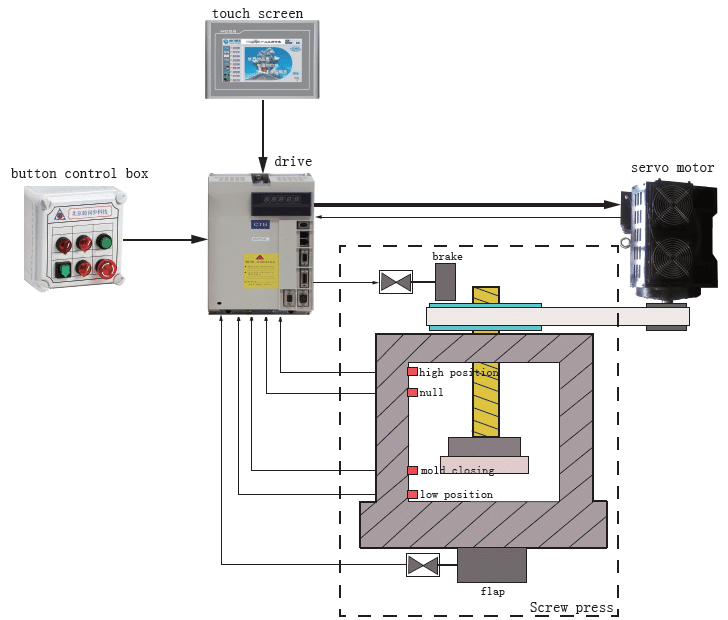

Scheme 1: touch screen + push button box + single shaft drive + YSM servo motor + proximity switch

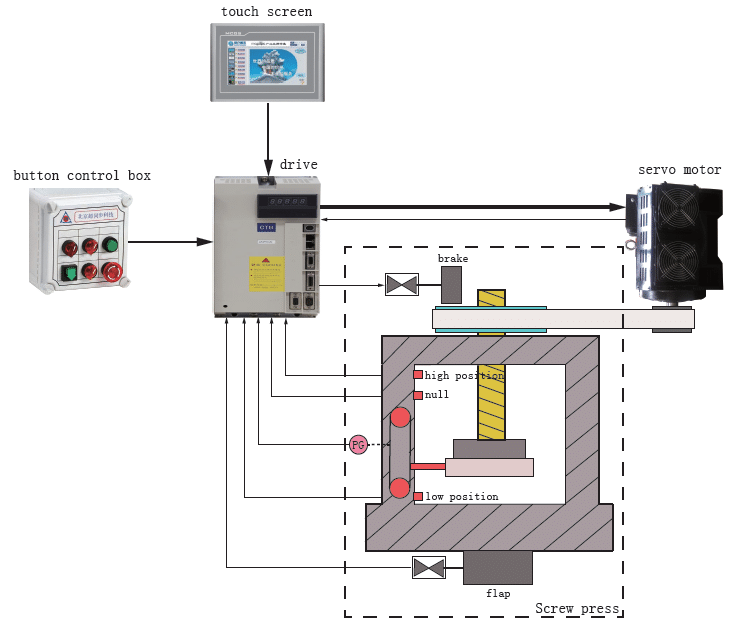

Scheme 2: touch screen + push button box + single shaft drive + YSM servo motor + external encoder + proximity switch

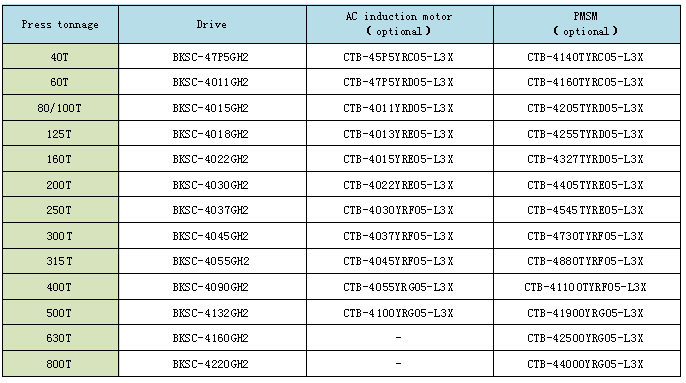

Model selection

Case
User: Zhengzhou ANENC industrial co., LTD
products: refractory brick
tonnage: 200 t, 315 t, 400 t
motor: YSM series ac induction motor
drive: GH2 drive

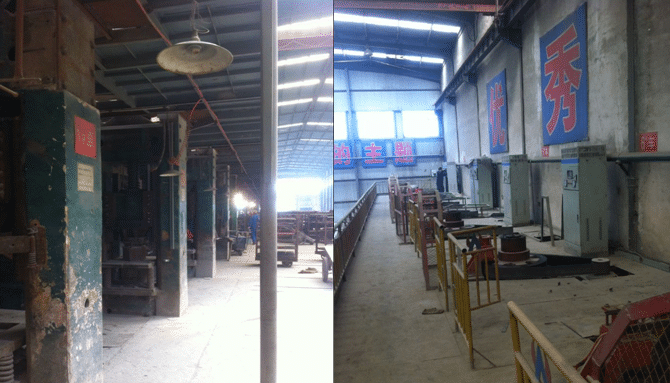

equipment photos as below
