Flying shear machine

Configuration scheme

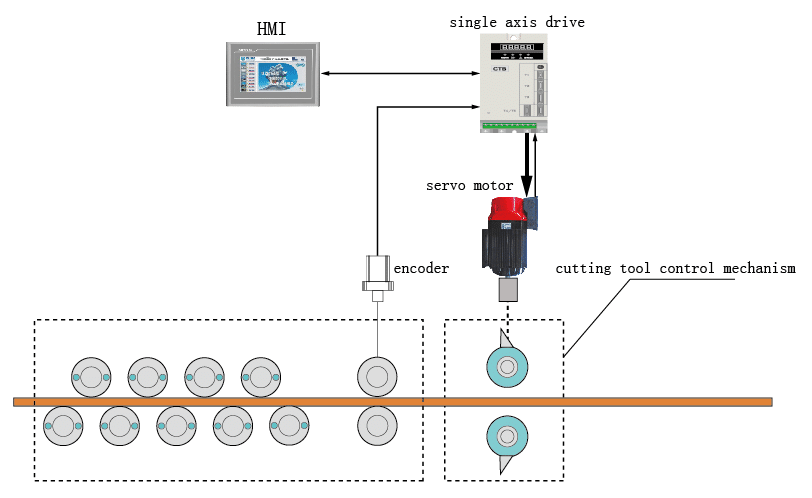

Scheme 1: man-machine interface + single shaft drive+ servo motor + external encoder

Built-in Vector motor

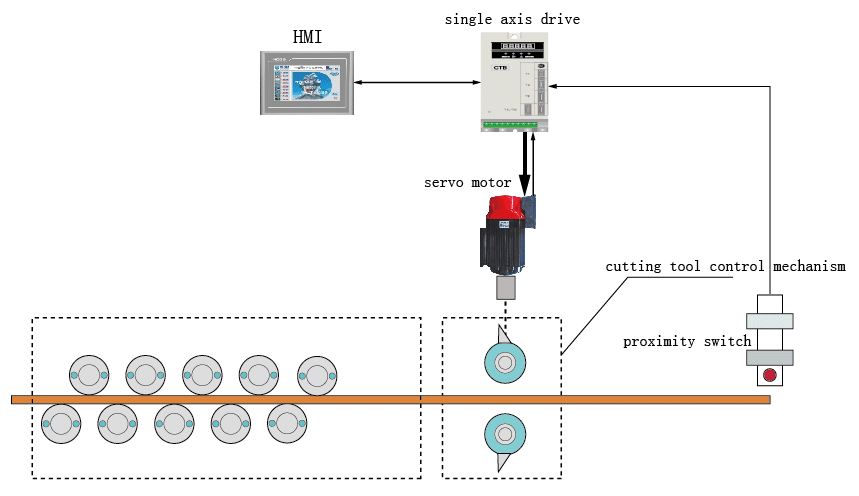

Scheme 2: man-machine interface + single shaft drive, servo motor + limit switch

Built-in Vector motor

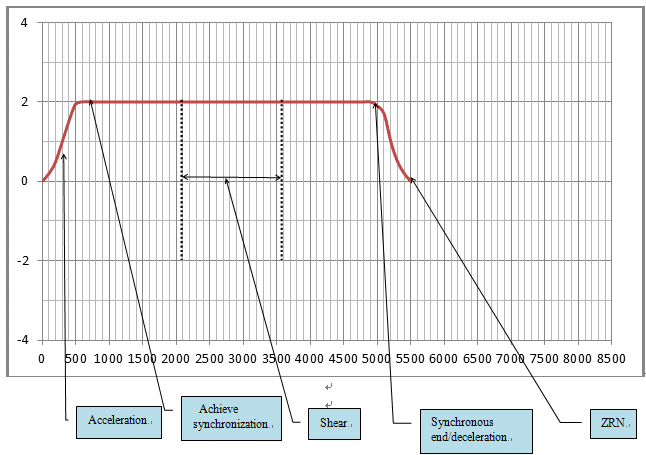

Motion curve

Built-in Vector motor

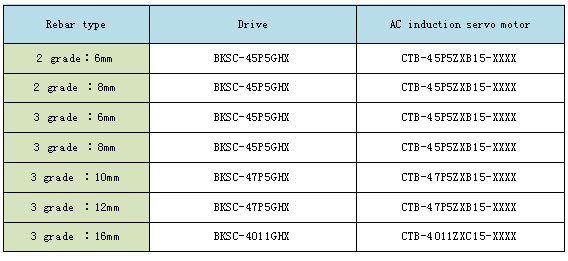

Model selection

Built-in Vector motor

Case

● User: Chengdu Cheng shi metallurgy co., LTD. Manufacturing branch
● Processing products: building steel processing
● Specifications: 6 mm, 8 mm, 10 mm, 12 mm
● Motor, AC induction motor
● Drive: GH series drive

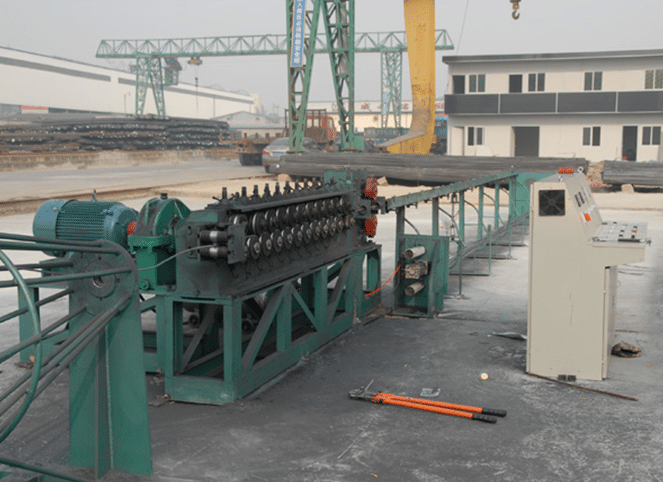

● Production equipment photos as below

Built-in Vector motor

Some other users

● Gong yi Jin di metallurgical equipment co., LTD
● Ren Qiu yong feng steel rolling equipment factory
● Sichuan jian yang Tian chen machinery factory
● Chongqing henlton technology co., LTD
● Zigong Jin rui cemented carbide mould co., LTD
