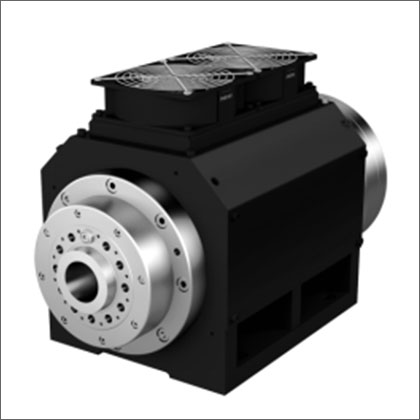

CNC LatheMotorized spindle A204 5.5/7.5 kW /6000rpm/60N.m

Product Details:


Brand Name: CTB
Model Number: A204
Motor type: Motorized spindle
Payment Terms: CE
Place of Origin: China

Categories:

CNC Lathe Motorized spindle
BCES-A204FA-45P5-3000/8000
● Motorized motor: asynchronous motor
● Spindle Interface: ISO A2-4
● Taper Parameter: 1:20
● Shaft hole diameter: 35mm
● Speed Control Precision:+/-0.2rpm
● Resetting Precision:+/-10”
● Max.Output torque:60N.m
● Weight:89KG



Performances

Rated Power Rated Torque Rated Voltage Rated Current Rated Speed Max.Speed Poles
5.5 kW 18 N.m 380 V 11.5 A 3000 rpm 8000 rpm 4 P
Stator Resistor Stator Leakage Rotator Resistor Rotator Leakage Exciting Resistor Mutual Inductance Rotary Inertia
0.369Ω 1.804 mH 0.795Ω 2.382 mH 1.443Ω 56.274 mH 0.045 kgm2

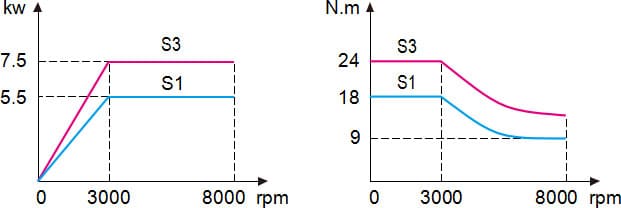

Performances Curve

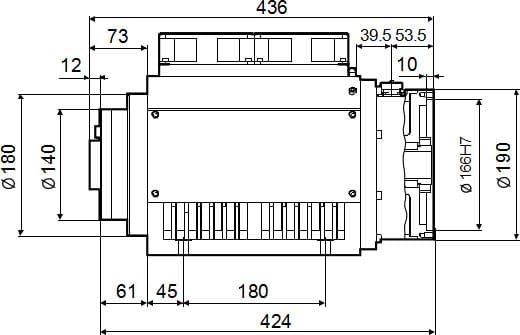

Overall Dimension

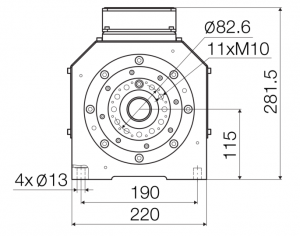

Front View

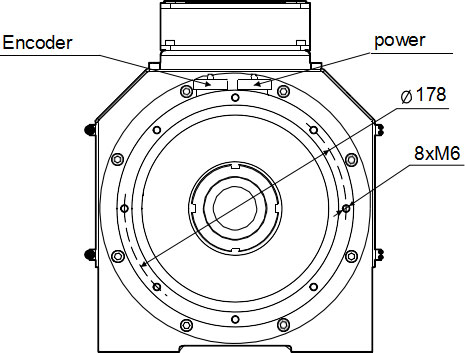

Back View
