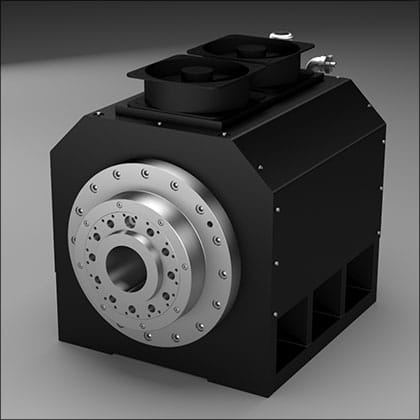

CNC Lathe Motorized spindle A208FA 22/30 kW /4000rpm/1200N.m

Product Details:


Brand Name: CTB
Model Number: A208FA
Motor type: Motorized spindle
Payment Terms: CE
Place of Origin: China

Categories:

CNC Lathe Motorized spindle
BCES-A208FA-4022-500/4000

● Motorized motor: asynchronous motor
● Spindle Interface: ISO A2-8
● Shaft hole diameter: 80mm
● Taper Parameter: 1:20
● Speed Control Precision:+/-0.2rpm
● Resetting Precision:+/-10”
● Max.Output torque:1200N.m
● Weight :570KG



Performances

Star connection

Rated Power Rated Torque Rated Voltage Rated Current Rated Speed Max.Speed Poles
22 kW 420 N.m 380 V 42 A 500 rpm 1500 rpm 6 P
Stator Resistor Stator Leakage Rotator Resistor Rotator Leakage Exciting Resistor Mutual Inductance Rotary Inertia
0.206 Ω 1.652 mH 0.176 Ω 2.945 mH 0.274 Ω 80.284 mH 1.6 kgm2

Corner connection

Rated Power Rated Torque Rated Voltage Rated Current Rated Speed Max.Speed Poles
22 kW 210 N.m 380 V 42 A 1000 rpm 4000 rpm 6 P
Stator Resistor Stator Leakage Rotator Resistor Rotator Leakage Exciting Resistor Mutual Inductance Rotary Inertia
0.206 Ω 1.721 mH 0.176 Ω 3.415 mH 1.172 Ω 106.822 mH 1.6 kgm2

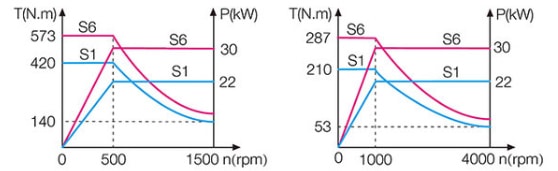

Performances Curve

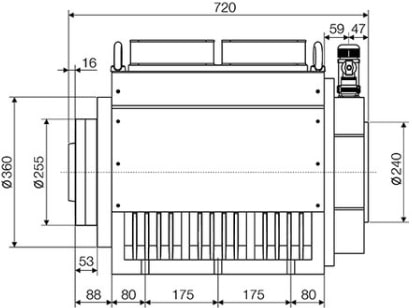

Overall Dimension

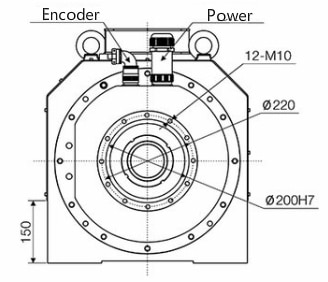

Front View



Back View



Standard Configuration
1、Front bearing NN3024 and 120BAR10S,back bearing NN3020,grease lubrication
2、Encoder 20Bit,bus output
3、Rotary oil cylinder interface disc, can be customized according to customer demand



Choice disposition
1、Hydraulic brake, hydraulic pressure 3-10mpa, braking power 840-1680nm
2、Servo Drive 22KW
