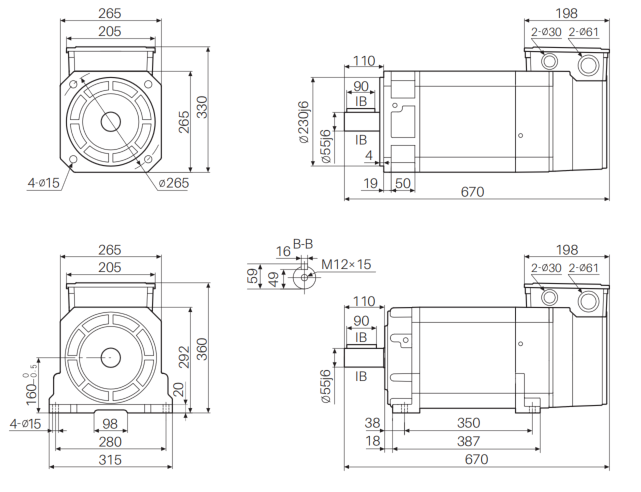

Servo Spindle Motor 22KW/140.1N.m/1500/8000rpm C4:265X265X670mm

Product Details:


Brand Name: CTB
Model Number: Z18-4022XC15-XXXX
Motor type: Ansynchronous Motor
Payment Terms: CE
Place of Origin: China



Specification



Electrical Parameter

Voltage Class : 400V    Connection : Y    Fan Power : 110W    Fan Voltage : 380V



Motor Model Rated Power
(KW)
Rated Current
(A)
Rated Torque
(N.m)
Rated Voltage
(V)
Pole Number
(P)
Rated Frequency
(H)
Rated Speed
(r/min)
Constant Power Max Speed
(r/min)
Max Speed
(r/min)
Rotational Inertia
(KG.m2)
Z18-4011XC07-XXXX 11 20.8/24.2/28.3 140.1 380/330/280 4 26.1 750 1500/2200/3000 4000 0.1186
Z18-4015XC10-XXXX 15 28.3/33.9/36.9 143.3 380/315/290 4 34.4 1000 2000/3000/4000 6000 0.1186
Z18-4022XC15-XXXX 22 40.5/45.7/52.1 140.1 380/335/295 4 51.0 1500 3000/4500/6000 8000 0.1186
Z18-4030XC20-XXXX 30 54.2/62.6/74.3 143.3 380/330/280 4 67.8 2000 4000/6000/8000 8000 0.1186

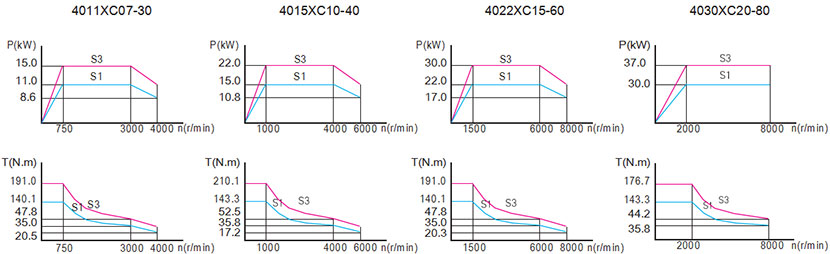

Characteristic Curve



Performance Index

ITEM INDEX


Encoder (optional)

MG-128(Magnetic)
CE9-2500(Incremental)
CE9-23B(Absolute)
RZ12-1024(Resolver)
SC-2048(SIN-COS)
Shaft Type G : Without Keyslot
J : With Keyslot
Mounting Type B3 B5 B35
Weight / Gross 138 (148) kg
Protection Class IP55
Insulation Class F Class
Rated Temperature
Rise
90K
Vibration Class A
Noise ≤70dB(A)
Environment -15~45℃
Environment ≤95%RH



Product Presentation



Model Explanation

No ITEM Description Model Meaning
1 Plant Code Z18 : Motor Series Code CTB Company Product
2 Voltage Class 2 : 200V 4 : 400V 400V
3 Power Code SeeStandard Specification Table 7.5KW

 4

Encoder Code

 Code Encoder Type
B : Without Encoder
C : Magnetic Encoder 128T 256T (Standard Configuration) G : Incremental Encoder
1024P 2500P 8192P
R : Resolver 1024P
S : Sin-Cos Encoder 2048P A : Absolute Encoder 23 bit

 Inbuilt Incremental Encoder

5

Motor Frame Size Code

 Code Flange Size (Length x Width) mm
A : 175×175 E : 320×320
B : 205×205 F : 380×380
C : 265×265 G : 480×480
D : 300×300 H : 580×580

 B Frame Size

 6

 BasicSpeed Code

  Code Speed r/min Code Speed r/min 05 : 500 45 : 4500
07 : 750 60 : 6000
10 : 1000 80 : 8000
15 : 1500 90 : 9000
20 : 2000 A0 : 10000
30 : 3000 A2 : 12000
40 : 4000 A5 : 15000

 Rated Speed:1500r/min

7

 Constant Power Max SpeedCode

 Constant Power Max Speed:6000 r/min

8

Max SpeedCode

 Code Speed r/min
L : 3000 HF : 10000 (A B Motor Base)
M : 6000 F : 12000 (A B Motor Base)
H : 8000 FF : 15000 (A Motor Base)

 Max Speed:8000 r/min

9

Mounting Type Code

 3 : Horizontally – Mounted 5 : Flanged – Mounting 35 : Horizontally – Flanged  Mounting

 Flanged Mounting

10

Motor Shaft Structure

 G : Without Keyslot J : With Keyslot

 Without Keyslot
