Specification
◆ Electrical Parameter
Voltage Class : 400V Connection : Δ Fan Power : 1.5kW Fan Voltage : 380V
| Motor Model | Rated Power (KW) |
Rated Current (A) |
Rated Torque (N.m) |
Rated Voltage (V) |
Pole Number (P) |
Rated Frequency (H) |
Rated Speed (r/min) |
Constant Power Max Speed (r/min) |
Max Speed (r/min) |
Rotational Inertia (KG.m2) |
| Z18-4090XH05-XXXX | 90 | 170/202/223 | 1719 | 380/320/290 | 8 | 33.7 | 500 | 1000/1500/2000 | 2500 | 6.804 |
| Z18-4132XH07-XXXX | 132 | 246/295/344 | 1681 | 380/320/275 | 8 | 50.4 | 750 | 1500/2200/3000 | 3000 | 6.804 |
| Z18-4160XH10-XXXX | 160 | 298/346 | 1528 | 380/335 | 8 | 67.1 | 1000 | 2000/3000 | 3000 | 6.804 |
| Z18-4250XH15-XXXX | 250 | 455 | 1592 | 380 | 8 | 100.5 | 1500 | 3000 | 3000 | 6.804 |

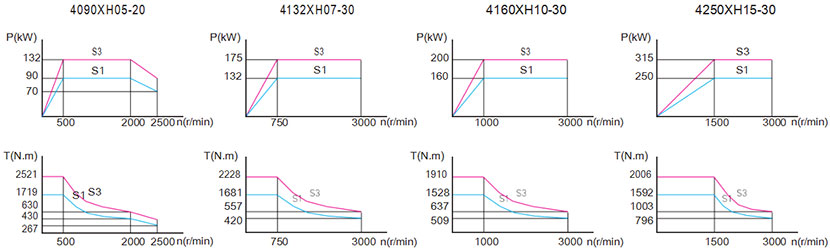

◆ Characteristic Curve
◆ Performance Index
| ITEM | INDEX |
| Encoder (optional) | MG-256(Magnetic) |
| CE30-2500(Incremental) | |
| CE30-8192(Incremental) | |
| RZ30-1024(Resolver) | |
|
Shaft Type |
G : Without Keyslot |
| J : With Keyslot | |
| Mounting Type | B3 B5 B35 |
| Weight / Gross | 1119 (1144) kg |
| Protection Class | IP55 |
| Insulation Class | F Class |
| Rated Temperature Rise |
90K |
| Vibration Class | A |
| Noise | ≤70dB(A) |
| Environment | -15～45℃ |
| Environment | ≤95%RH |

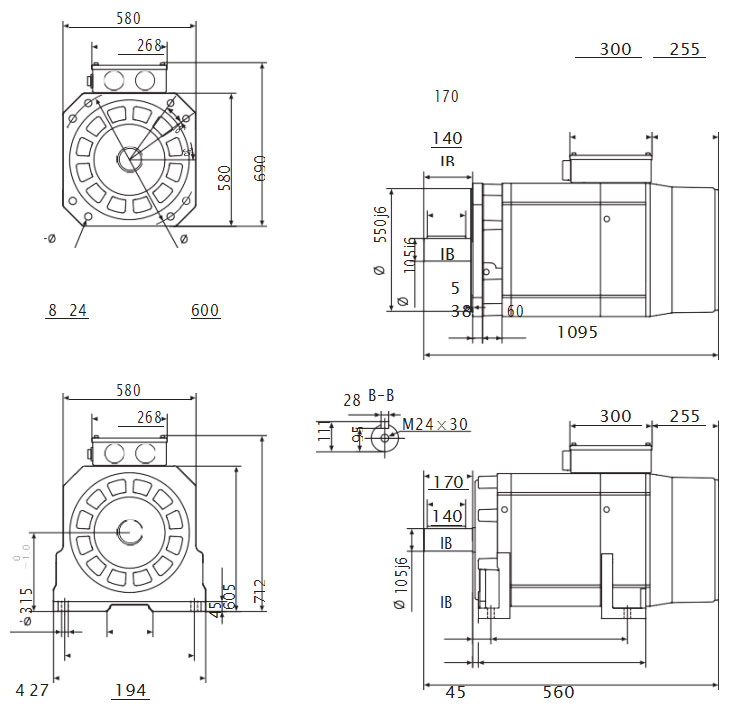

Product Presentation
Model Explanation
| No | ITEM | Description | Model Meaning |
| 1 | Plant Code | Z18 : Motor Series Code | CTB Company Product |
| 2 | Voltage Class | 2 : 200V 4 : 400V | 400V |
| 3 | Power Code | SeeStandard Specification Table | 7.5KW |
|
4 |
Encoder Code |
Code Encoder Type B : Without Encoder C : Magnetic Encoder 128T 256T (Standard Configuration) G : Incremental Encoder 1024P 2500P 8192P R : Resolver 1024P S : Sin-Cos Encoder 2048P A : Absolute Encoder 23 bit |
Inbuilt Incremental Encoder |
|
5 |
Motor Frame Size Code |
Code Flange Size (Length x Width) mm A : 175×175 E : 320×320 B : 205×205 F : 380×380 C : 265×265 G : 480×480 D : 300×300 H : 580×580 |
B Frame Size |
|
6 |
BasicSpeed Code |
Code Speed r/min Code Speed r/min 05 : 500 45 : 4500 07 : 750 60 : 6000 10 : 1000 80 : 8000 15 : 1500 90 : 9000 20 : 2000 A0 : 10000 30 : 3000 A2 : 12000 40 : 4000 A5 : 15000 |
Rated Speed:1500r/min |
|
7 |
Constant Power Max SpeedCode |
Constant Power Max Speed:6000 r/min |
|
|
8 |
Max SpeedCode |
Code Speed r/min L : 3000 HF : 10000 (A B Motor Base) M : 6000 F : 12000 (A B Motor Base) H : 8000 FF : 15000 (A Motor Base) |
Max Speed:8000 r/min |
|
9 |
Mounting Type Code |
3 : Horizontally – Mounted 5 : Flanged – Mounting 35 : Horizontally – Flanged Mounting |
Flanged Mounting |
|
10 |
Motor Shaft Structure |
G : Without Keyslot J : With Keyslot |
Without Keyslot |
