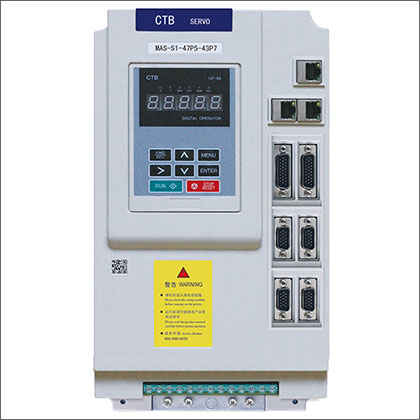

MAS S1 double axis servo drive

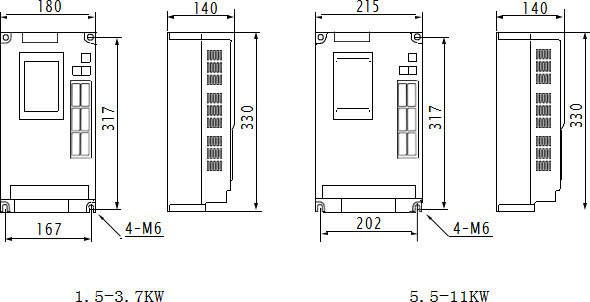

◆ Shape and mounting size
◆ Standard specification
Power：Three Phase 50/60Hz 380/400/440V
| Model | Main drive unit（S axis） | Auxiliary drive unit（X axis） | Brake resistance (Model X quantity) | ||
| Rated power (kW) |
Rated current (A) |
Rated power (kW) |
Rated current (A) |
||
| MAS-S1-41P5-4XXX | 1.5 | 4 | 0.75/1.5/2.2/3.7 0P75/1P5/2P2/3P7 |
2/4/5/8 | B200W300R×1 |
| MAS-S1-42P2-4XXX | 2.2 | 5 | B300W150R×1 | ||
| MAS-S1-43P7-4XXX | 3.7 | 8 | B600W50R×1 | ||
| MAS-S1-45P5-4XXX | 5.5 | 13 | 5.5/7.5/11 5P5/7P5/011 |
13/17/25 | B800W40R×1 |
| MAS-S1-47P5-4XXX | 7.5 | 17 | B1000W32R×1 | ||
| MAS-S1-4011-4XXX | 11 | 25 | B600W50R×2 | ||
◆ Performance index:
● Main drive unit：1，1.5～11KW
● Auxiliary drive unit：1，0.75～11KW
● Drive motor：AC induction servo motor/PMSM
● X/Z axis function：speed control，positioning control， zero return
● Communication interface：RS232 RS485 CAN Ether net
● Bus Interface：MECHATROLINK ETHER CAT PROFINET
● The axial-control signal, analog, pulse, I/O, encoder output
● Relay output：2 channels(each 1 channel for X/Z axis)
● The hand wheel/external encoder interface: 1 channel incremental pulse input
● The motor encoder interface：2channel CTB BUS
● Optional configuration: touch screen, the hand wheel, external encoder

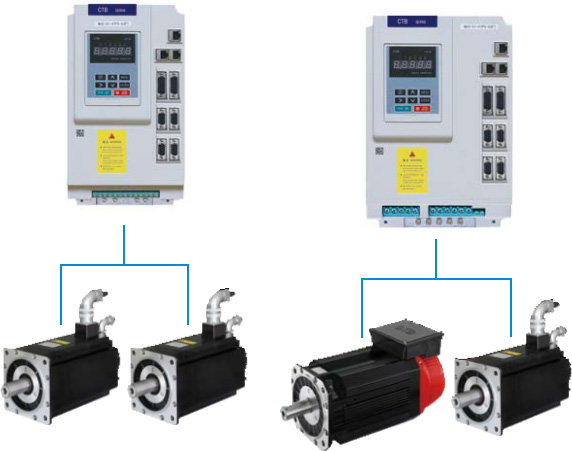

● Control function: independent control of two axis, double axis joint control

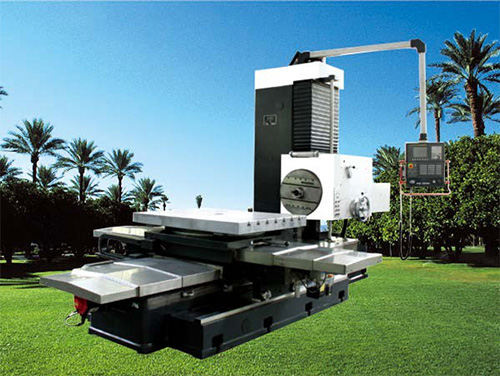

● Applying area: Vertical lathe, gantry machine, general boring machine, heavy duty horizontal lathe,tapping machine, radial drilling machine etc.
◆ MAS-S1standard wiring diagram
