Permanent magnet synchronous servo motor 200.0-400.0 KW/2547.0-3820.0N.m /1000-3000rpm/ H4:580×580×1375mm

Product Details:


Brand Name: CTB
Motor type: Permanent magnet synchronous servo motor
Payment Terms: CE
Place of Origin: China

Categories:

Electrical Parameter

Voltage:400V    Pole:12    Fan Power:1.5kW    Fan Voltage:380V

Motor model Rated power
(kW)
Rated torque
(N.m)
Rated current
(A)
Rated frequency
(Hz)
Rated speed
(r/min)
Maximum speed
(r/min)
Anti- electromotive
(V/krpm)
Rotational inertia
(kg.m2)
P18-4200HX05-10XX 200 3820 345 50 500 1000 526 8.502
P18-4260HX07-15XX 260 3311 481 75 750 1500 335 8.502
P18-4285HX10-20XX 285 2722 568 100 1000 2000 239 8.502
P18-4400HX15-30XX 400 2547 671 150 1500 3000 191 8.502

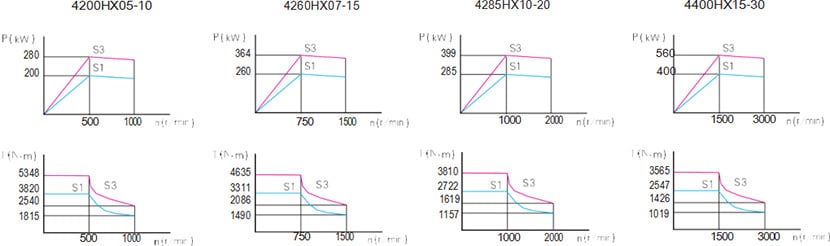

Characteristic Curve



Performance Index

ITEM INDEX
ENCODER (OPTIONAL) MG-256(MAGNETIC)
CE9-23B(ABSOLUTE)
RZ12-1024(RESOLVER)
SC-2048(SIN-COS)
SHAFT TYPE G:WITHOUT KEYSLOT
J:WITH KEYSLOT
MOUNTING TYPE B3 B5 B35
WEIGHT/GROSS
WEIGHT
1518 / 1548kg
PROTECTION CLASS IP55
INSULATION CLASS F CLASS
RATED TEMERATURE
RISE
90 K
VIBRATION CLASS S
NOISE ≤70dB(A)
ENVIRONMENT
TEMPERATURE
-15~45℃
ENVIRONMENT
HUMIDITY
≤95%RH

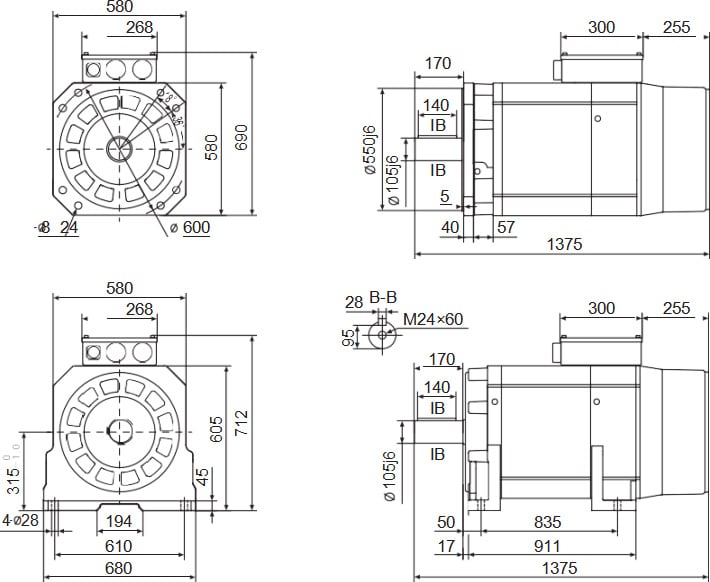

Shape And Installation Size



Product Presentation



Model description

NO Name Description Model Meaning

1

Product Series

P18:P18 series permanent magnet synchronous servo motor

Made By CTB

2

Voltage Class

2:200V class 4:400V class 400V Class

3

Power Code

see standard configuration form

7.5kW

4

Motor Frame Code

Motor frame   flande size mm   Motor frame   flange size mm
A:             175×175               E:              320×320
B:             205×205               F:              380×380
C:             265×265               G:              480×480
D:             300×300               H:              580×580

B Motor Frame

5

Encoder Type

Code Encoder Type
B: Wthout Encoder
C: Magnetic Encoder 128T、256T
G: Incremental Encoder 1024P、 2500P、6000P、8192P
R: Resolver 1024P
S: Sin-cos Encoder 2048P
A: Absolute Encoder 13bit、17bit 、23bit

Built-in Magnetic Encoder

6

Rated Speed Code

Code  speed r/min   Code  speed r/min
05:    500               45:   4500
07:    750               60:   6000
10:    1000             80:   8000
15:    1500             90:   9000
20:    2000             A0:  10000
30:    3000             A2:  12000
40:    4000             A5:  15000

Rated Speed:1500 r/min

7

Maximum Speed Code

Maximum Speed:3000 r/min

8

Mounting Method Code

3:Horizontally-mounting 5:Flanged-mounting 35:Horizontally-Flanged

Flange Mounting

9

Motor Shaft Type

G: Without keyslot J: With keyslot

Without Keyslot
