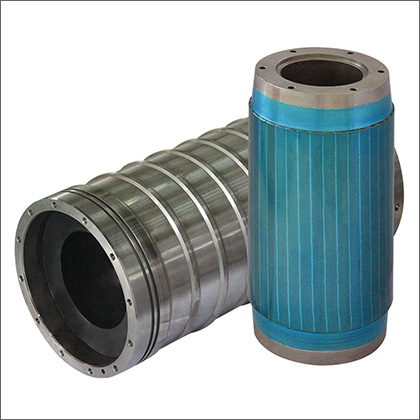

Built-in spindle 1.5-15 KW/9.5-28N.m /6000-12000rpm/ 70-240mm

Product Details:


Brand Name: CTB
Motor type: DZM60
Payment Terms: CE
Place of Origin: China



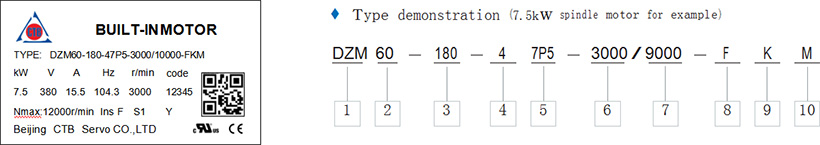

◆ Type demonstration

Model Name Description Catalog No. Explanation
1 Motor type code DZM:built-in induction spindle motor built-in induction spindle motor
2 Series code 46 60 74 85 100 110 124 146 160 170 195 215 60 series
3 Core length Unit:mm Core length: 180mm
4 Voltage class 2:200V 4:400V 400V class
5 Power code See standard specification table 7.5kW
6 Rated speed Unit:rpm Rated speed:3000 rpm
7 Constant power max
speed
Unit:rpm Constant power max speed:9000
rpm
8 Cooling method code Code cooling method Code cooling method
F: air cooling L: liquid cooling
air cooling
9 Rotor installation method Code Installation method Code Installation method N: direct thermal sleeve K: through-hole mounting Z: expanding-hub mounting J: Key mounting Through-hole mounting
10 Stator structure type Code structure method
M:blank stator (stator excircle unprocessed, stator end not grout glue)
G:glue stator(stator excircle finishing, end grout glue) T:with cooling jacket(stator with external cooling jacket, end grout glue)
Blank stator
Remark ▲ Insulation class F ▲ stator built-in KTY84 temperature sensor and 130℃ normal close thermal protection
▲ Stator lead wire JYJ-150(0.5m)

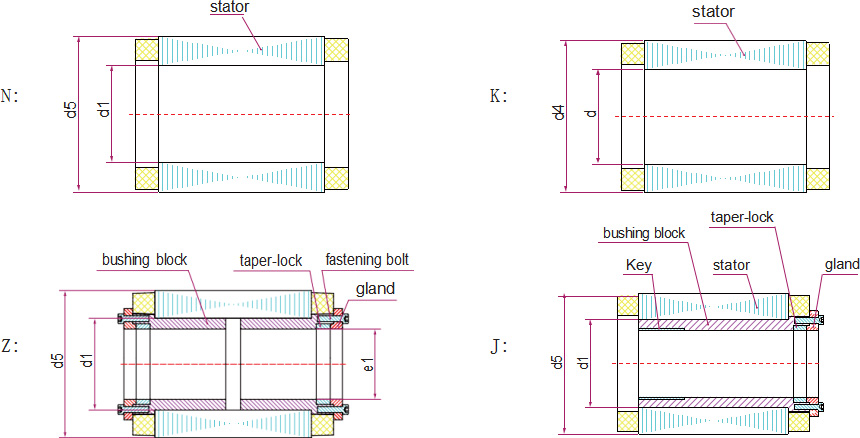

◆ Stator mounting method figure



Standard series

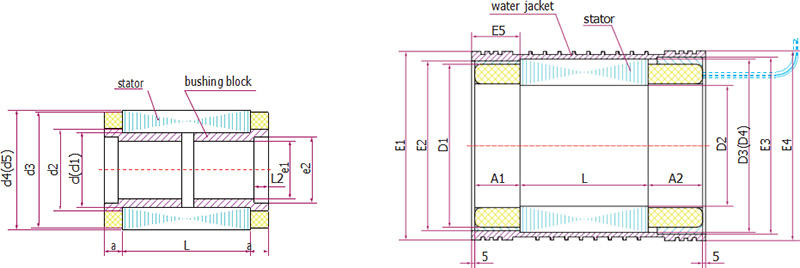

Shape size figure

DZM series Rotor shape size Note:”()” means blank dimension

Motor model Rotor shape size
a d (d1) d2 d3 d4 (d5) e1 e2 L2 L
DZM46 15 46 45 53 69 70.4 71 40 45 10 see standard
specification table
DZM60 25 60 58.5 68 95 97.4 98 50 57 12
DZM74 28 74 72.5 87 112 114.3 115 65 73 14
DZM85 20 85 82.5 96 139.5 141.3 142 75 84 16
DZM100 30 100 98.5 110 155 159.2 160 75 84 16
DZM110 17 110 108.5 120 173 173.2 174 75 84 16
DZM124 29 124 122.5 135 196 199.2 200 90 101 19
DZM146 19 146 144 160 204 209.2 210 110 124 23
DZM160 22 160 158 175 234 236.1 237 125 139 23
DZM170 23 170 168 185 261.5 264 265 130 148 30
DZM195 27 195 192 210 289.5 292.8 294 160 178 30
DZM215 25 215 212 245 379 383.6 385 160 178 30



DZM series Rotor shape size Note:”()” means blank dimension

Motor model

Rotor shape size
A1 A2 D1 D2 D3 (D4) E1 E2 E3 E4 E5 L
DZM46 40 45 110 71 120 121 132 118 121 132 45 see standard
specification table
DZM60 45 50 142 98 156 157 166 154 157 167 50
DZM74 45 55 165 115 180 181 197 179 182 200 50
DZM85 55 60 195 142 210 211 228 200 212 230 57
DZM100 60 65 230 160 250 251 268 245 251 270 60
DZM110 65 70 235 174 255 256 284 245 257 286 60
DZM124 75 85 270 200 292 293 312 285 293 314 75
DZM146 70 75 275 210 300 301 328 290 302 330 62
DZM160 65 75 305 237 330 331 358 320 332 360 65
DZM170 75 85 345 265 370 371 398 360 372 400 70
DZM195 80 90 370 294 400 402 428 390 402 430 73
DZM215 95 105 490 385 520 522 548 512 523 550 85



◆ DZM60 series built-in motor standard specification

Voltage grade:400V    Pole:4    Limit speed:18000rpm

Core length L

basic speed (rpm) air cooling liquid cooling
model DZM60- Power (kW) Torque (N.m) Current (A) Max speed model DZM60- Power (kW) Torque (N.m) Current (A) Max speed
70 1500 70-41P5-1500/ 4500-FXX 1.5 9.5 3.5 6000 70-42P2-1500/2500-LXX 2.2 14.0 5.2 4500
70 3000 70-43P7-3000/ 7500-FXX 3.7 12.0 7.8 9000 70-45P5-3000/5500-LXX 5.5 17.5 12.0 8000
120 1500 120-43P0-1500/ 4000-FXX 3.0 19.0 6.7 6000 120-43P7-1500/3000-LXX 3.7 23.6 8.2 4500
120 2000 120-43P7-2000/ 6000-FXX 3.7 18.0 8.0 8000 120-45P5-2000/4000-LXX 5.5 26.0 12.0 6000
120 3000 120-45P5-3000/ 9000-FXX 5.5 17.5 11.5 10000 120-47P5-3000/6500-LXX 7.5 24.0 15.5 8000
180 1500 180-44P0-1500/ 4500-FXX 4.0 25.5 8.6 6000 180-45P5-1500/3000-LXX 5.5 35.0 12.0 4500
180 2000 180-45P5-2000/ 6500-FXX 5.5 26.0 12.0 8000 180-47P5-2000/4500-LXX 7.5 35.8 16.0 6000
180 3000 180-47P5-3000/10000-FXX 7.5 24.0 15.5 12000 180-4011-3000/7500-LXX 11.0 35.0 23.0 8000
240 1500 240-45P5-1500/ 5000-FXX 5.5 35.0 12.0 6000 240-47P5-1500/3500-LXX 7.5 48.0 16.0 6000
240 3000 240-4011-3000/10000-FXX 11.0 35.0 23.0 12000 240-4015-3000/7500-LXX 15.0 48.0 30.0 9000



Design scheme

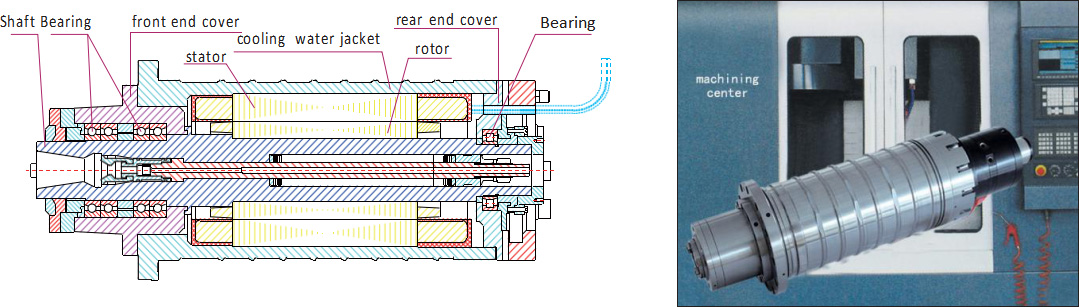

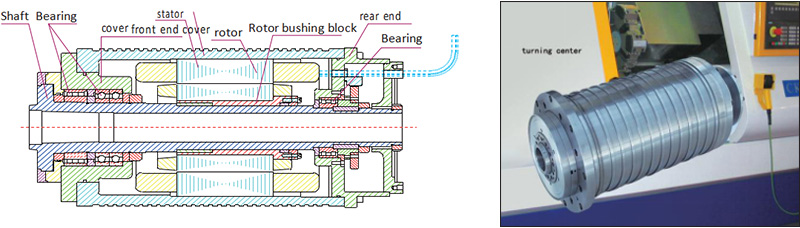

Motorized spindle of machining center

Applying area: CNC milling machine machining center CNC boring machine Suitable tool holder:BT(CT)series、Morse series、ISO series、BIN series、ER series

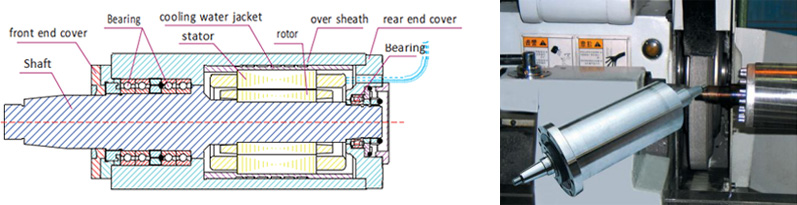

NC lathe motorized spindle

Applying area:Meter lathe, Gang Tool Type Lathe, CNC lathe( horizontal lathe bed, slant bed)



Grinder motorized spindle

Applying area:Internal grinder, cylindrical grinder, surface grinder
